Control via the web with IP-SwitchBox:

IP-SwitchBox800 has 8 outlets for max 16A/230V.

IP-SwitchBox810 has 8 dual pole
changing over relays for max 30V/2A.
IP-SwitchBox802 has 2 outlets
for max 16A/230V.

IP-SwitchBox902 has 16 relay outputs
for 48VDC 15A.
IP-SwitchBox1616 has 16 opto
coupled inputs and 16 relay outputs.

Controlled by any web browser, http.

Connects to Ethernet, TP.

IP address and port is configurable.

Embedded reset-timer for connected equipment.

Configurable switch-on delays.

8+1 configurable usernames/passwords.

Remote controlled se rial port via Telnet or web browser.

Optional basic/digest/no authorization.

Configurable read/write rights for the users.

Can also be controlled by RS232.

Made in Sweden.

The browser looks like
this when controlling
IP-SwitchBox800.
The outlets are controlled individually.
Choose to have the outlets immediately changed or changed when clicking on update.

With IP-SwitchBox You can control, for example, computers and modems.
Then You can do hard reset on them remotely. You can of course control other equipments well, for example measurement systems or test arrangements.
And You can control it from anywhere in the world!

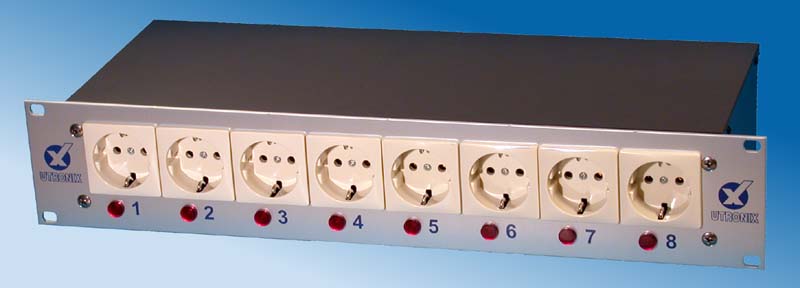

You connect to the outlets with common mains plugs, easily accessible from the front. The power inlet is on the back.

The web page for reset looks like this.
When You push reset the outlets is turned of for a period of time and the automatically turned on again.
Here is 10 second reset made on outlet 5.

The web page for inputs and outputs with IP-SwitchBox1616 looks like this.
The buttons at the top is for controlling the relays.
The circles below indicates the inputs.

For more information download PDF files:

Overview on IP-SwitchBox800 /802 /810 (294k).

Brochure for IP-SwitchBox1616 (116k).
Brochure for IP-SwitchBox800 (406k).

Users guide for IP-SwitchPlug801 (455k).
Users guide for IP-SwitchBox1616 (754k).
Users guide for IP-SwitchBox800 (776k).

Examples on how to control IP-SwitchBox800 from your own programs can be found here.

Known browser problems.

Do You already have an IP-SwitchBox? Then please give us feedback! What can we do better?
